Small and Medium-Sized Curved Foldable Screen Lamination Line
-
Applications
Lamination fields, such as smartphones, foldable fexible OLED screen
-
Product Size
Maximum size-225×150mm
Minimum size-120×50mm
-
Efficiency
9s per equipment
1 line with 2 equipments: 4.5s Takt Time
-
Equipment Accuracy
2D Lamination: ±0.05μm
3D Lamination: ±0.1mm
-
Equipment dimensions
unit equipment: L18600×W3200×H2400mm (For reference only)
1 line with 2 equipments: L38200×W3200×H2400mm (Inter-unit spacing: 1000mm, in-line integrated downstream debubbling system, for reference only)
-
Technical Avantages
Proprietary high-precision contour-matching silicone material, with proven expertise in finite element simulation. The equipment is capable of realizing 0-180° dual-surface curved lamination, 0-70° isometric four-surface curved lamination, and foldable screen compatibility;
CCD vision alignment；
Delivers high-precision lamination with bubble-free, crack-free, dent-free results, ensuring superior adhesion quallity.
-
Technological Process
Panel loading → Code scanning & USC cleaning → Back Protective Film Peeling → Plasma Cleaning for Panel backside → Panel & carrier film lamination → Panel&OCA lamination → OCA lamination accuracy inspection → Panel&CG lamination → UV debonding → Carrier film removal → Final product accuracy inspection → Finished product unloading

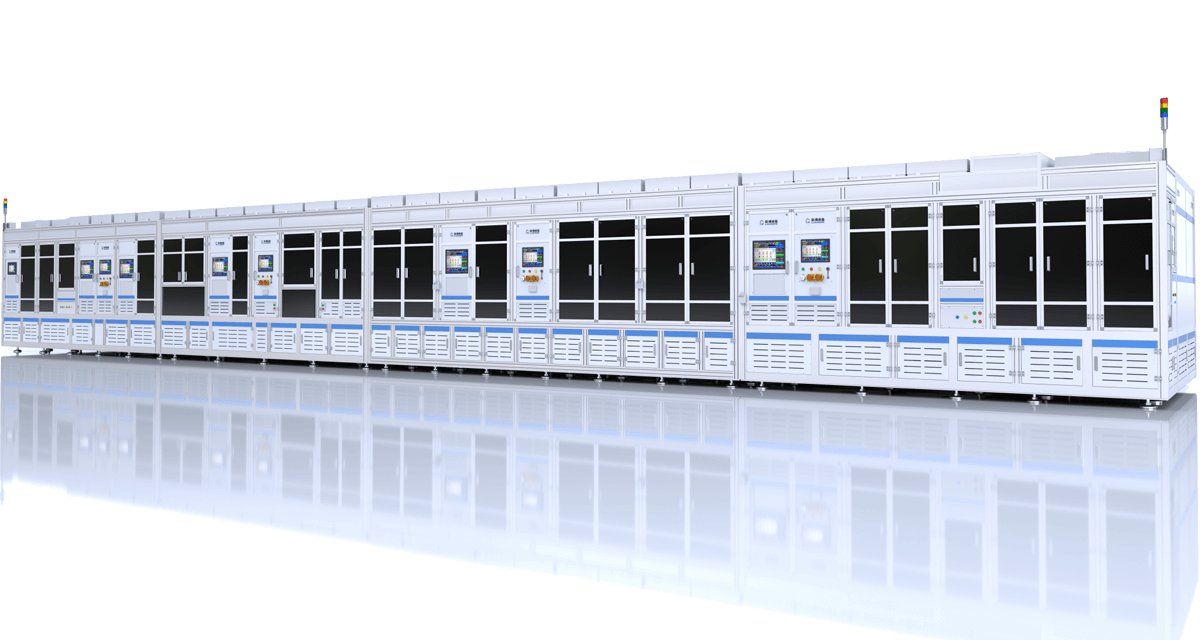

Small and Medium-sized Curved Foldable Display Lamination Line
Small and Medium-Sized Curved Foldable Display Lamination Line, applied for lamination in fields of smartphones and foldable flexible OLED screen. The process includes loading, Code scanning, cleaning, film peeling, laminating, inspection, and unloading.
