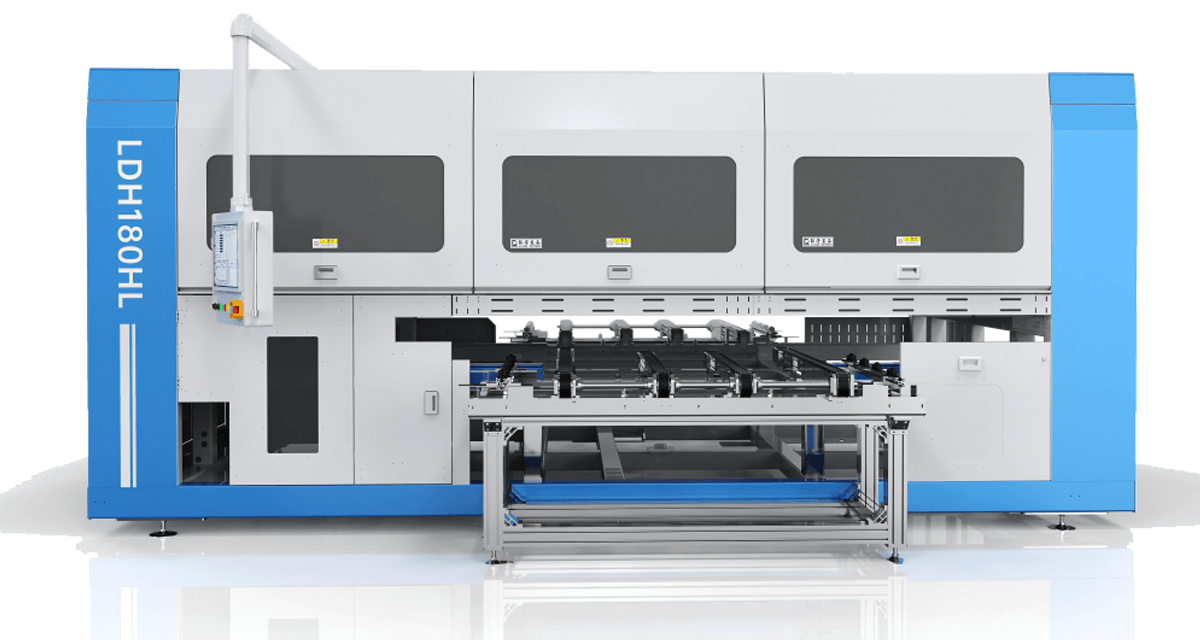

Busbar Welding Machine
-
Applications
Solar module busbar welding
-
Size
1. Solar Cell Size: 156mm-220mm (Standard configuration customizable)
2. Module configurations:
6 series × 10 half-cells × 2 & 6 series × 11 half-cells × 2 & 6 series × 12 half-cells × 2 & 6 series ×13 half-cells × 2;
6 series × 15 three-split cells × 2;
5 series × 10 half-cells × 2 & 5 series × 11 half-cells × 2 & 5 series × 15 three-split cells × 2;
Cell gap: 0.5-4mm, String spacing: 1-6mm;
Compatible with 21Xmm 5-series layout;
3. Glass size: 980-1500mm(W), 1630-2600mm(L)
-
Efficiency
20s (Bypass welding disabled)
23s (Bypass welding enabled)
-
Equipment Dimensions
L5126×W4980×H2640mm
-
Technology Process
Panel loading → Ribbon pulling → Ribbon transfer → String alignment → Electromagnetic welding → Panel unloading
Busbar Welding Machine
The busbar welding machine is an automated device that utilizes electromagnetic welding heads to connect tabs onto bushars for each cells.
Technical Specification
Equipment characteristic
- 1. Triple-busbar(front, middle, back) synchronous welding design with high stability and high OEE, maintenance-friendly
- 2. Machine vision-enabled string alignment compensation enhances tab lead-to-busbar positioning accuracy, ensuring welding quality
- 3. Adopting electromagnetic induction welding technology adjustable temperature and time, truely achieving high-speed joining
- 4. High component compatibility: 2600mm×1500mm
- 5. Dual robotic manipulator system enables parallel transfer of unwelded modules and post-weld assemblies, achieving synchronous material flow operation and optimizing takt-time efficiency
- 6. Electromagnetic induction welding with closed-loop dynamic regulation, delivering low-stress, reliable and stable welding performances
