Name
Soft Solder Die Bonder
-
Accuracy
X-Y offset <±40μm, rotation <±2°
-
Temperature Zone
8 zones; controlling independently
-
Capacity
4-9K (diverse models; efficiency varies by model)
-
Pneumatic system
10-channel pneumatic system
-
Wafer System
12" wafer, compatible with 8"/6" (optional)
-
Void rate
Single<2%, total<5%
-
Solder dot thickness
25-75μm
-
Flatness
<30μm
-
Material Handling
Loading Mode: Multi-mode selectable, such as : Vertical stack suction/Magazine loading/Flip-chip suction
Unloading Mode: Magazine Unloading
-
Die Bonding System
Die Bonding Force: 30-500g
-
Rotation
360° (MAX)
-
Equipment Dimensions
L2300mm (2560mm with pusher) ×W1380×H1420mm

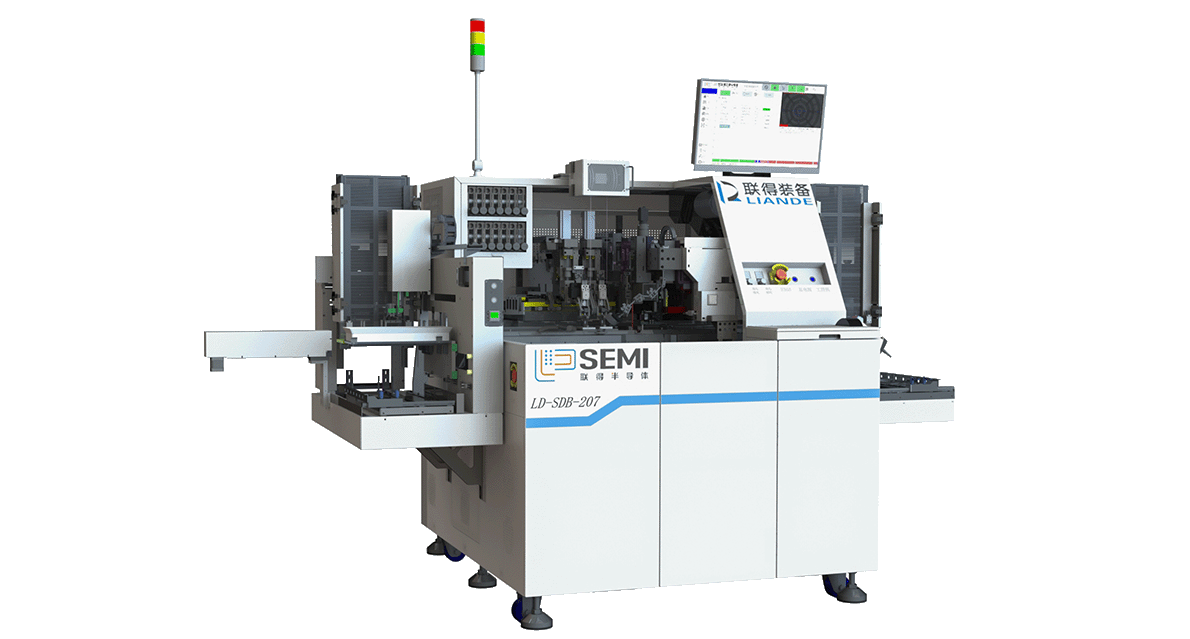

Soft Solder Die Bonder

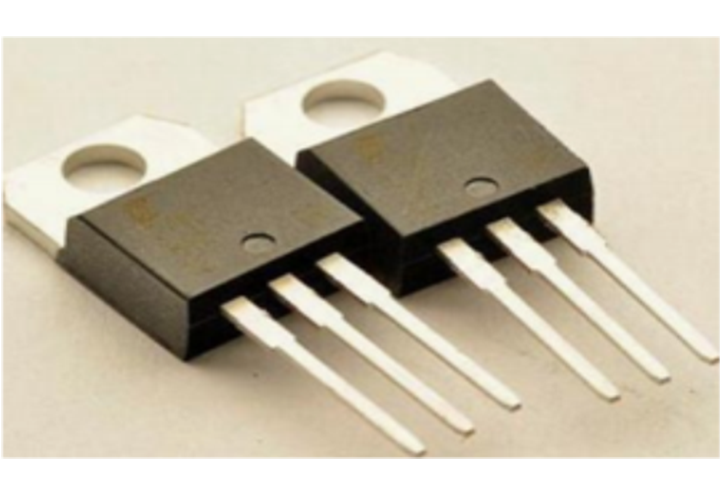

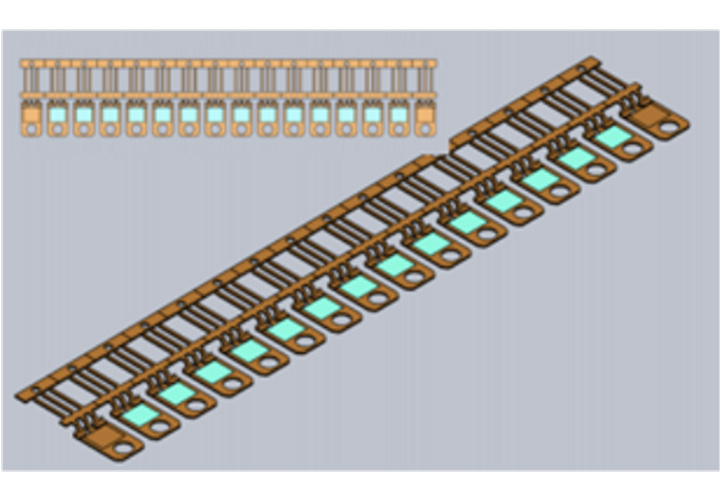

The soft solder die bonder is a packaging equipment that mounts chips onto corresponding packaging materials using tin-based soldering heating method, specifically designed for die bonding processes in power devices including TO-220, TO-427, 3P, TO-252, and PPAK .etc packages.
