Name
Leadframe/Substrate AOI Auto-Inspection Equipment
-
Key features

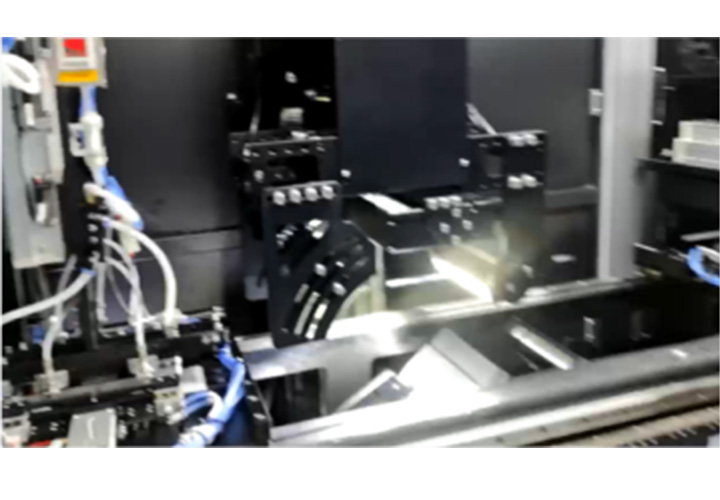

The vision inspection system features dual stations
Front side: Coaxial + linear light sources with time-shared strobe lighting for image capture
Back side: Linear light source for illumination and image capture
-
Attachment Accuracy
12μm/pixel
-
Inspection Station
Single channel, bright and dark field, capable of inspecting both sides(front and back)
-
Equipment Dimensions
L2000×W1200×H2000mm (For reference only)
-

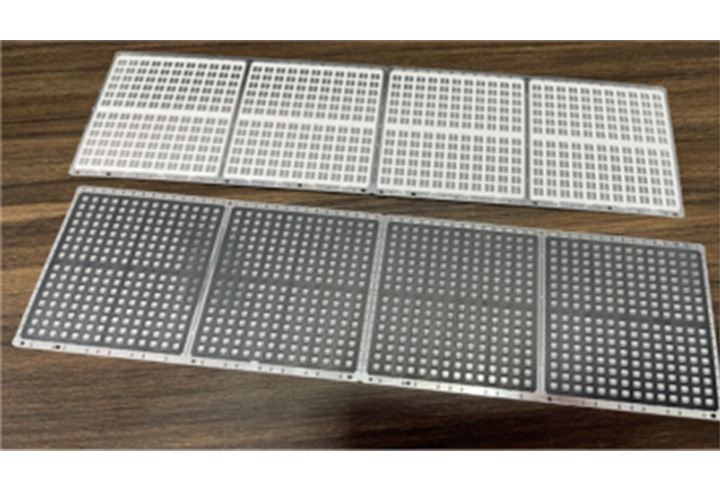

Leadframe Dimensions
100x300mm (Customizable vacuum fixture platforms of various leadframes based on requirements )
-
Capacity UPH
200 (varies by inspection requirements)
-
Technological Process
Auto-loading → Cleaning → Defect Inspection → Auto-unloading
Leadframe/Substrate AOI Auto-Inspection Equipment

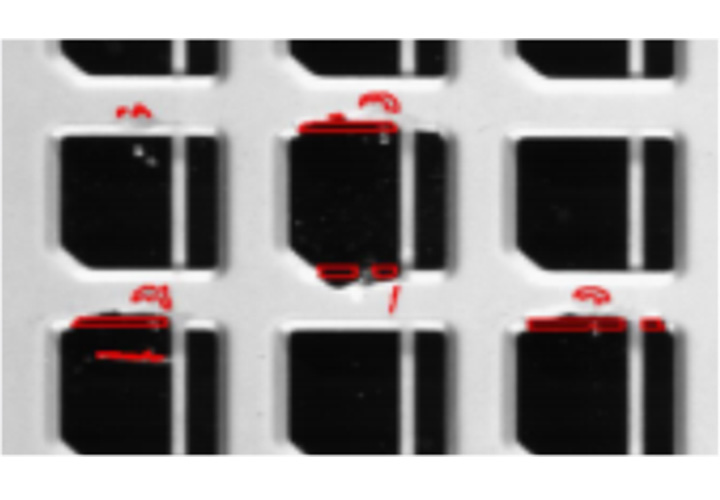

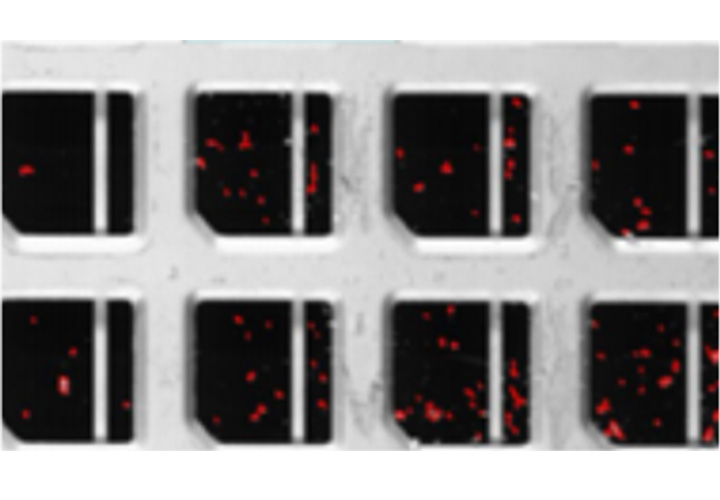

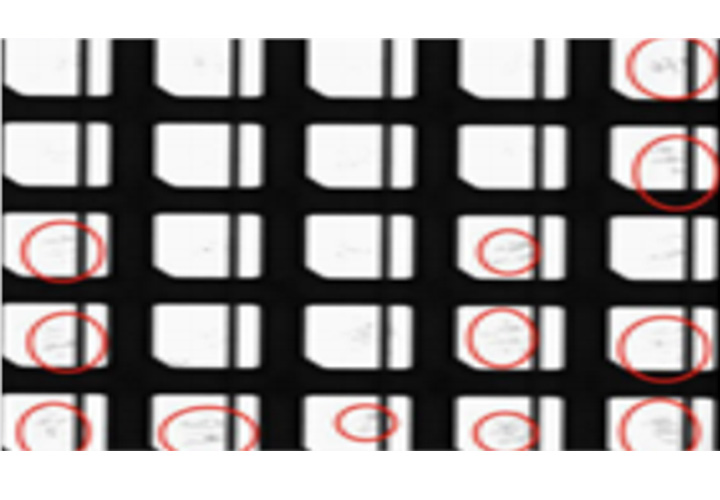

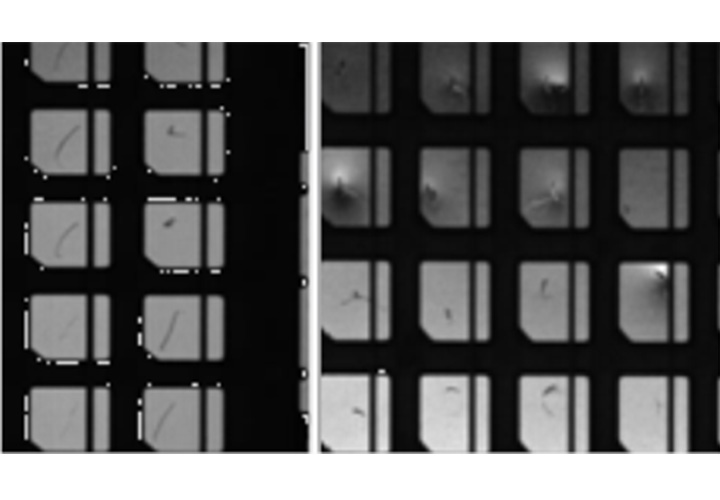

Leadframe/Substrate AOI Auto-Inspection Equipment for LED leadframe defect detection: identifies cracks, powder contamination, insufficient adhesive, adhesive overflow, adhesive surface blackening, displacement, and contamination. The system marks defective frames for further processing.
