Name
Vacuum Dryer
-
Product Capacity
15PPM
-
Applicative Cell Dimensions
140-180mm(W)
85-220mm(H)
20-80mm(T)
-
Temperature range
RT-120℃ adjustable
-
Cooling time to ≤60℃
≤30min
-
Moisture content
Cathode<200PPM, Anode<300PPM
(Initial moisture 800-1500PPM)
-
Temperature uniformity
±3℃

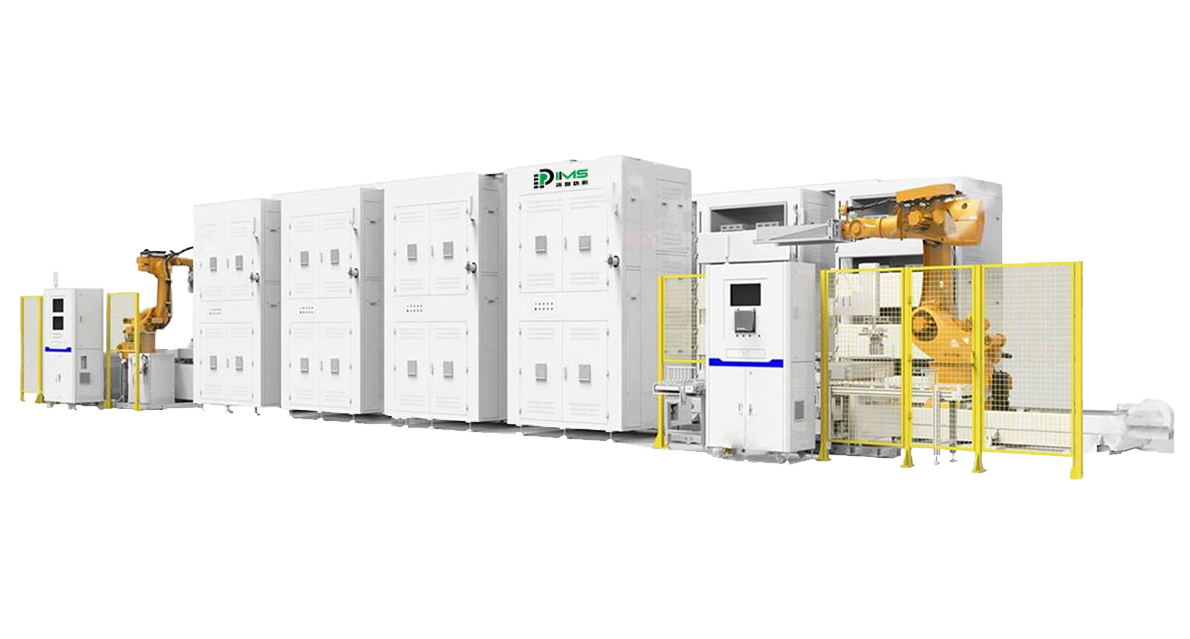

Vacuum Drying Line

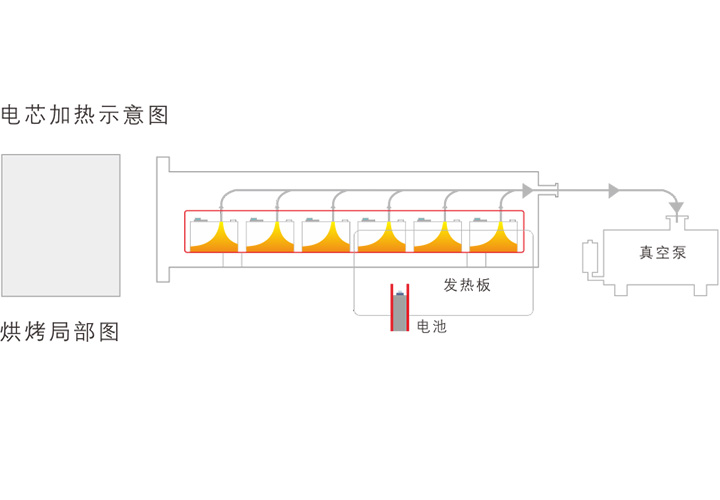

The vacuum dryer is a vacuum drying equipment for the baking process of prismatic aluminum-casing cells, primarily utilizing rapid heating combined with auxiliary high vacuum for accelerated moisture removal.
Details
Technical Specification
Equipment characteristic
- Conductive thermal rapid dehydration with high thermal efficiency, saving~50% energy per unit
- Specialized thermal system ensures pressure/temperature uniformity in vacuum chamber
- Bottom-hinged door design ensuring door's anti-drop with high safety
- 6-axis robot with flexible grippers for assemly&disassemly during material handling, equiped with adaptive collision detection and alarm system
- Full-area safety guarding, physical isolation between robotic work zones(palletizing, transfer, depalletizing) and personnel work areas, equipped with ≥4 CCTV cameras for 360° real-time monitoring
Optional configurations
- Insulation resistance test
- Transfer robot with auto-lubrication system, heavy-duty hydraulic buffers, and safety interlocks system
- Depalletizing execution: 4-axis robot, high-flexibility triaxial platform with efficiency, which is cost-effective and reliable.
- Battery cooling: Stepwise circulation cooling oven with high-pressure filtered dried-cold air for rapid cooling
- Fixture self-test: Online continuity test Fixture maintenance platform: Offline anti-electrocution design with high safety ensurance
