Name
Secondary Electrolyte Filling Machine
-
Unit Capacity
15PPM
-
Applicative Cell Dimensions
120-400mm(W)
60-250mm(H)
20-90mm(T)
-
Max. filling volume
400ml
-
Filling accuracy
≤100g±1g
＞100g±0.7%
-
Weighing accuracy
±0.1g
-
Pressure range
95kPa-1MPa

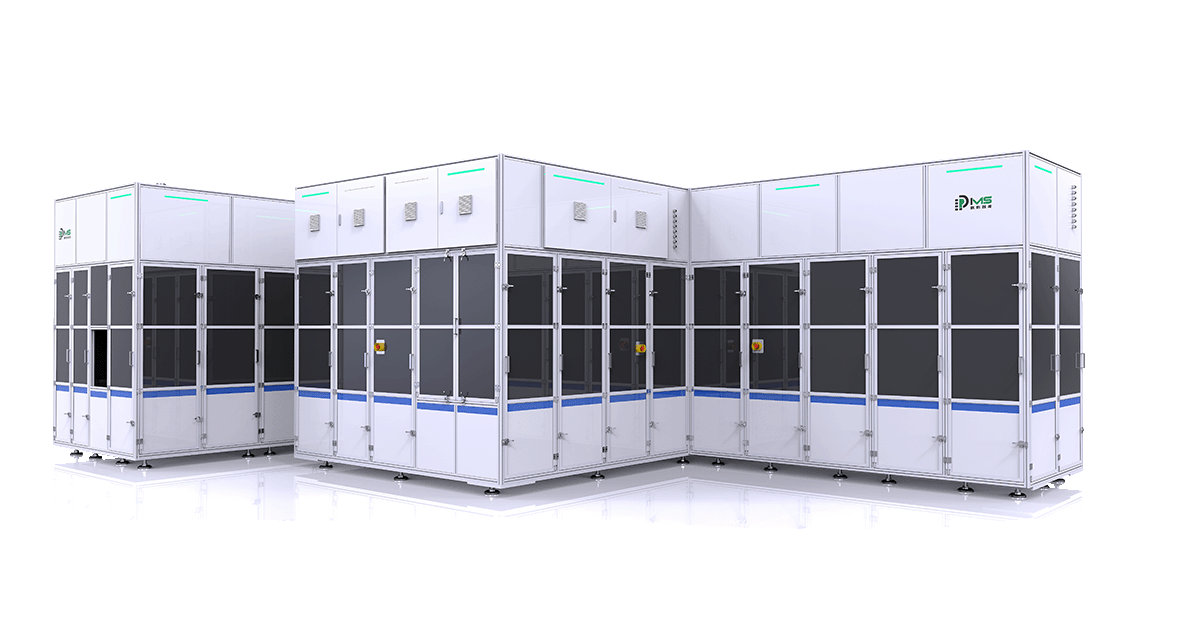

Secondary Electrolyte Filling Machine
The secondary electrolyte filling machine for prismatic aluminum case batteries executes the secondary filling process, integrating formation pin removal, automated weighing & code scanning, automated cell loading/unloading in fixtures, electrolyte pump dosing and filling, positive/negative pressure dwelling cycles, post-filling weighing, vacuum helium backfilling & pin sealing, filling port cleaning, and MES data traceability transmission, operating as fully automated inline equipment.
Details
Technical Specification
Equipment characteristic
- Differential pressure filling with alternating dwell cycles as vacuum pressure, ambient pressure, positive pressure, reducing electrolyte infiltration time
- Five-surface encapsulation fixture prevents cell deformation during filling
- High-capacity constant-flow filling pump and large-bore needles enable high-speed filling
- Auto-flushing system for filling lines improves yield rate
- Full-machine electrolyte corrosion resistance, adopting high-corrosion-resistant polymers and 316 stainless steel as key components
- Adopting modular design, convenient for model changeover
Optional configurations
-
Differential pressure filling
Max. Pressure differential: 0.3MPa
-
Isobaric filling
Max.Pressure: 1MPa
