Name

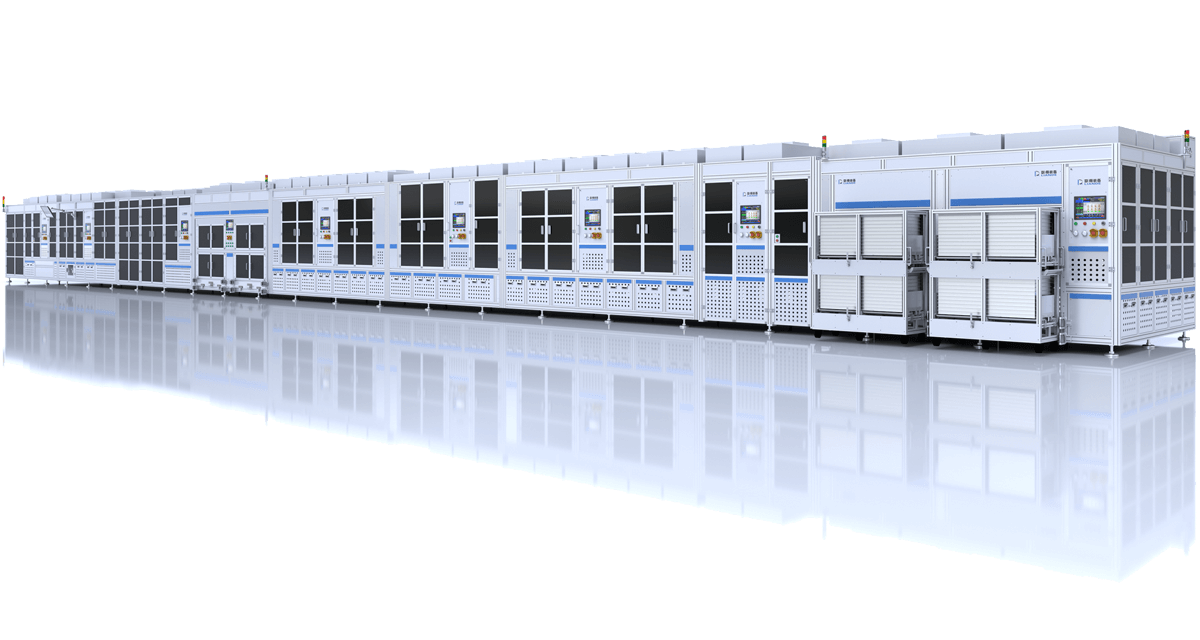

Large-format Automotive Automatic Lamination Line
-
Configuration
Fully automated CG (Cover Glass)/FOG (Flexible Optical Glass) lamination system applicated in automotive fields, including CG/FOG auto-loading, film peeling, cleaning, auto-alignment, laminating, precision inspection, in-line auto-debubbling and auto-unloading
-
Product Size
CG: min 100×180mm
max 1500×500mm
-
Efficiency
Single screen: 30s
Dual screens: 50s
-
Equipment Accuracy
STH: ±0.1mm
HTH ±0.1mm
-
Equipment Dimensions
L31000×W2800×H2400mm (For reference only)
-
Technological Advantages
Achieves fully automated lamination and debubbling processes in large-format automative fields;
Compatible with single/dual/triple screens;
Enabling the lamination to C/V/Z-shaped products;
Proven high-performance automation with good yield and uptime, and deployed in multiple top automative manufacturing companies.
-
Technological Process
CG Auto-loading → Auto film peeling → Lint-free IPA Cleaning → USC/Plasma Cleaning → OCA Lamination → Auto-peeling for secondary film → Vacuum CG-FOG Lamination → Precision Inspection → In-line Debubbling → Auto-unloading → FOG Auto-loading →Auto film peeling → Plasma Cleaning
Large-format Automotive Automatic Lamination Line
Large-format automotive automatic lamination line for CG-FOG lamiantion with OCA adhesive, compatible with single/dual/triple-screen assemblies, processes include: panel loading, film peeling, surface cleaning, lamination, film peeling, vacuum lamination, inspection, unloading, FOG auto-loading, and plasma cleaning.
