Name
Fully automated Tray-Changing Scanner
-
Applications
Enabling automatic tray-changing and Code scanning inspection for diverse cavity pitches modules of various smartphone camera products.
-
Product Size
Tray Width: 100-150mm
-
Efficiency
UPH≥2200
-
Equipment Accuracy
±0.02mm
-
Equipment Dimensions
L2200×W1800×H2200mm (For reference only)
-
Technological Advantages
Batch conversion capability for trays of different cavity pitches;
Isometric pitch-adjustment mechanism for mass transfer;
Integrated Code scanning and real-time data transmission.
-
Technological Process
Material Loading → Inspection → Tray Consolidation → Flipping → Code Scanning → Tray Removal → Finished Product unloading

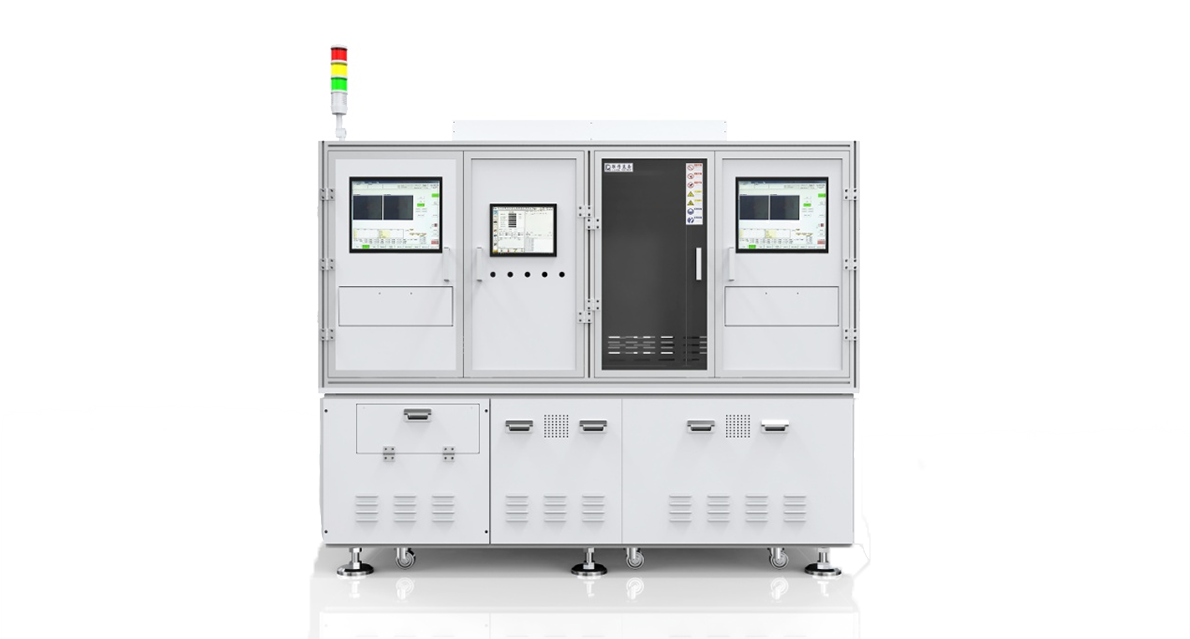

Fully Automated Tray-Changing Scanner
The fully automated tray-changing scanner handles various mobile camera product trays with different cavity pitches, executing tray replacement and product code scanning/inspection through processes including tray loading, inspection, tray consolidation, flipping, code scanning, tray removal, and unloading.
Technical Specification
