Name
Camera Module Cover Assembly Machine
-
Applications
Enabling code scanning inspection and cover plate assembly for diverse cavity pitches modules of various smartphone camera products, while providing standardized carrier trays for downstream production equipment.
-
Product Size
Size Scope: 90×50mm～ 170×100mm
-
Efficiency
UPH≥2800
-
Equipment Accuracy
Capping accuracy: ±0.05°
Vision inspection accuracy: 99.99%
-
Technological Advantages
The equipment utilizes code scanners to bind data to carriers and cover plates respectively, enabling traceable quality control.
CCD-based alignment ensures assembly accuracy between carriers and cover plates.
CCD inspection detects camera module offsets and warpage, implementing stringent product screening, strictly controlling product quality
-
Technological Process
Carrier Loading → Carrier Transfer → Positioning & Code Scanning → Vision Imaging → Cover Plate Assembly → Unloading
Cover Plate Loading → Positioning & Code Scanning → Vision Imaging → Assembly → Unloading

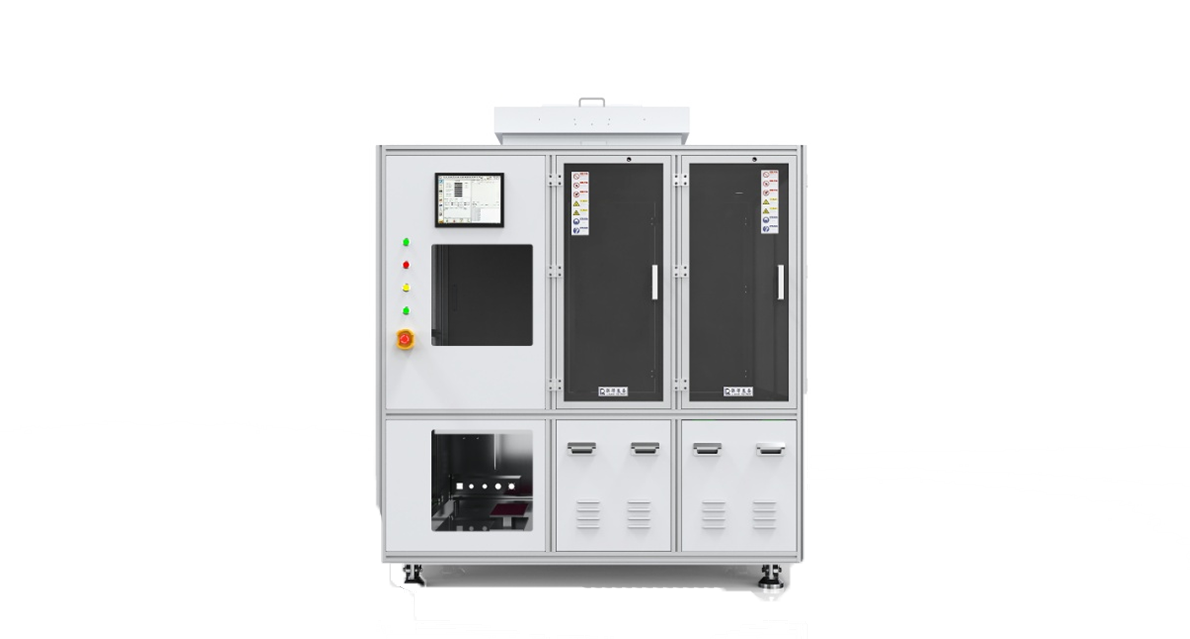

Camera assembly cover machine
Camera Module Capping System enables code scanning inspection and cover plate assembly for diverse cavity pitches modules of various smartphone camera products, while providing standardized carrier trays for downstream production equipment.
Technical Specification
