Fully automated Small-sized 4S Flexible Screen OLED EC/COP/FOP/AOI/Dispensing Bonding Full Line
-
Product Size
10-23Inch
-
Takt Time
10s (Single-side mounted dual FPC connectors)
15s (Opposing-sid mounted dual T-FPC connectors respective)
-
Equipment Accuracy
ACF Bonding Accuracy: X：±0.15mm(3σ)，Y：±0.1mm(3σ)
TFOP：XY：±15μm(3σ)
-
Equipment dimensions
L18150×W3550×H2200mm (For reference only)
-
Technical Avantages
Fully automated in-line loading/unloading;
Automated stringing operation;
Customized vacuum gripping suction for 10–23-inch flexible screens (anti-deformation design);
Split independent alignment correction for Y-shaped long FPC during pre-bonding, enhancing product precision;
Class 100 cleanroom compliance throughout equipment.
-
Technological Process
LD → EC → T-FPC Bonding(TFOP/DOT) → AOI+ART → ULD

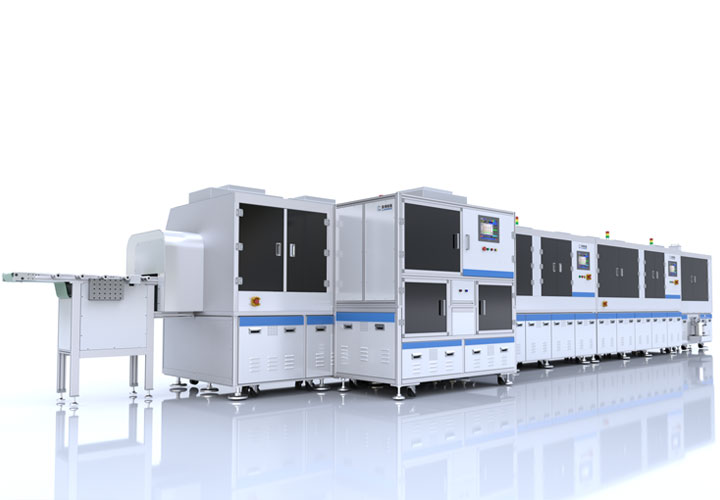

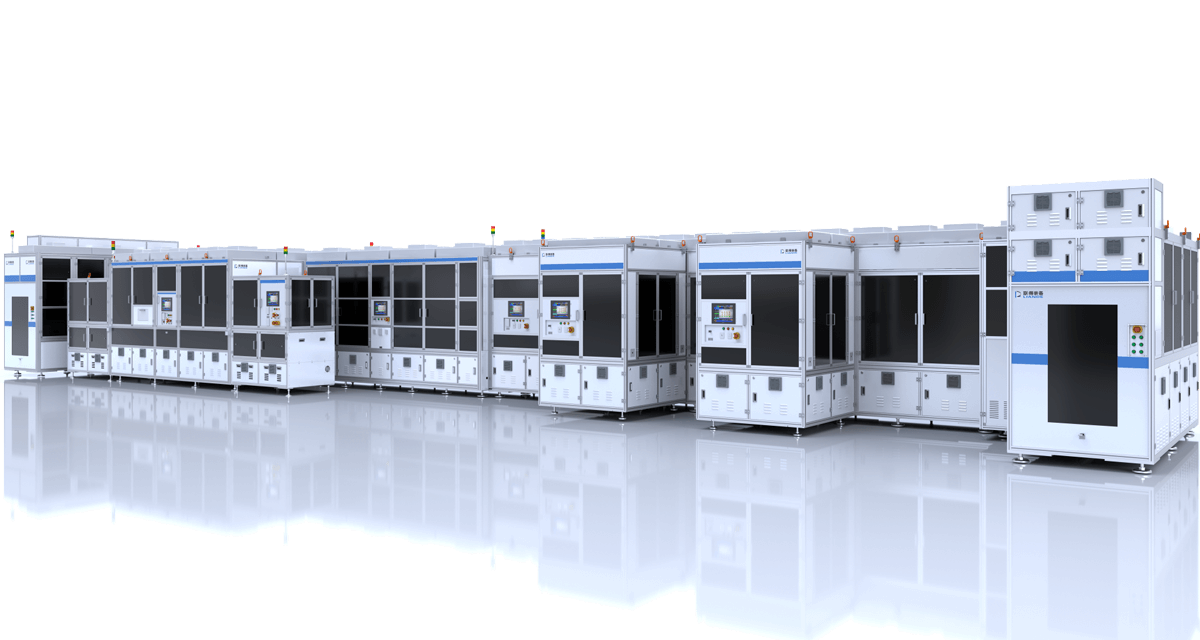

Fully automated Small-sized 4S Flexible Screen OLED EC/COP/FOP/AOI/Dispensing Bonding Full Line
Fully automated Small-sized 4S Flexible Screen OLED EC/COP/FOP/AOI/Dispensing Bonding Full Line for flexible screen under 23'', featuring:
- Auto-loading
- Top&bottom USC cleaning
- Terminal Plasma cleaning,
- T-FPC auto-loading → cleaning → bonding
- Post-bonding AOI offset inspection + ART impedance testing
- Auto-unloading by material handling machine interfacing with dual-layer AGV material carrier
